XN5004T Features Specs Compare
Features Specs
Compare

XCubeNAS

XN5004T

CPU

Intel® Celeron® 2.9GHz Dual-Core Processor

RAM

8GB DDR4 SO-DIMM (Max 32GB)

Hybrid Storage

Innovative N+1 Drive Tray Design

Network

4 x 1GbE Network Interface

Easy File Access with Quick Connection

Web Finder

No need to install any applications, you can easily find your XCubeNAS.

Find your NAS

XFinder

XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.

Find your NAS

Lightest SMB Multi-function Data Center

WORM

WORM technology is designed to prevent intentional modification and help your data away from ransomware attack.

XReplicator

The most reliable and efficient PC backup solution on XCubeNAS.

XMirror

You can regularly synchronizes a volume, or the contents of a folder between multiple XCubeNAS devices.

Rsync

Data copies can be distributed to your trusted storage locations through real-time remote backup.

Snapshot Replication

Transporting snapshots to multiple XCubeNAS to help administrators utilize the storage capacity and secure your data.

File Retention

Automatically file management increases the efficiency of the storage capacity.

Perfect Architecture

Boost your performance via SSD cache

Hidden Heat Dissipation

Smart Fan Control

Tool-less Installation

Simple & Intuitive Use

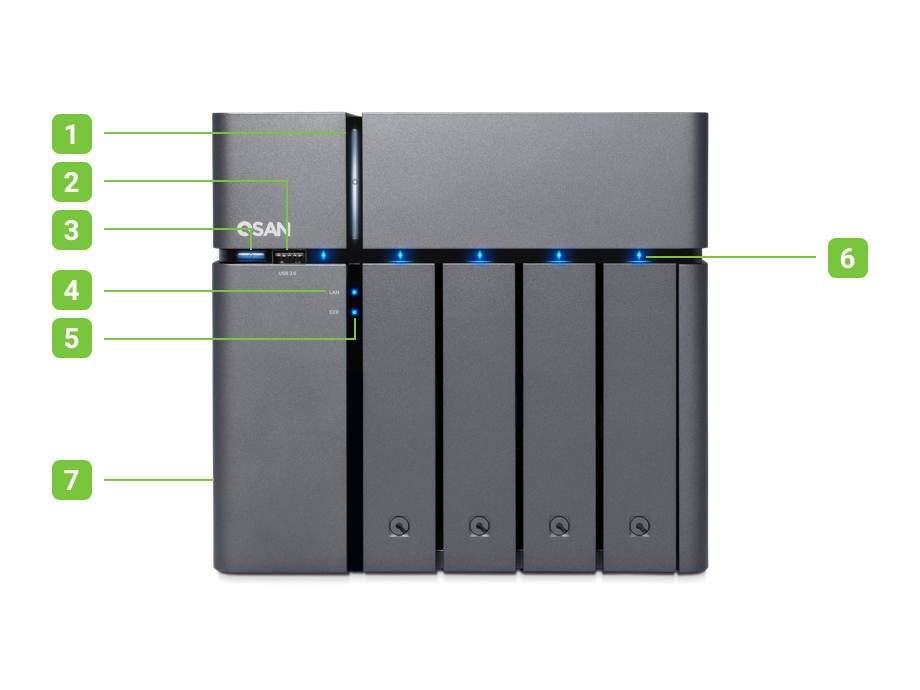

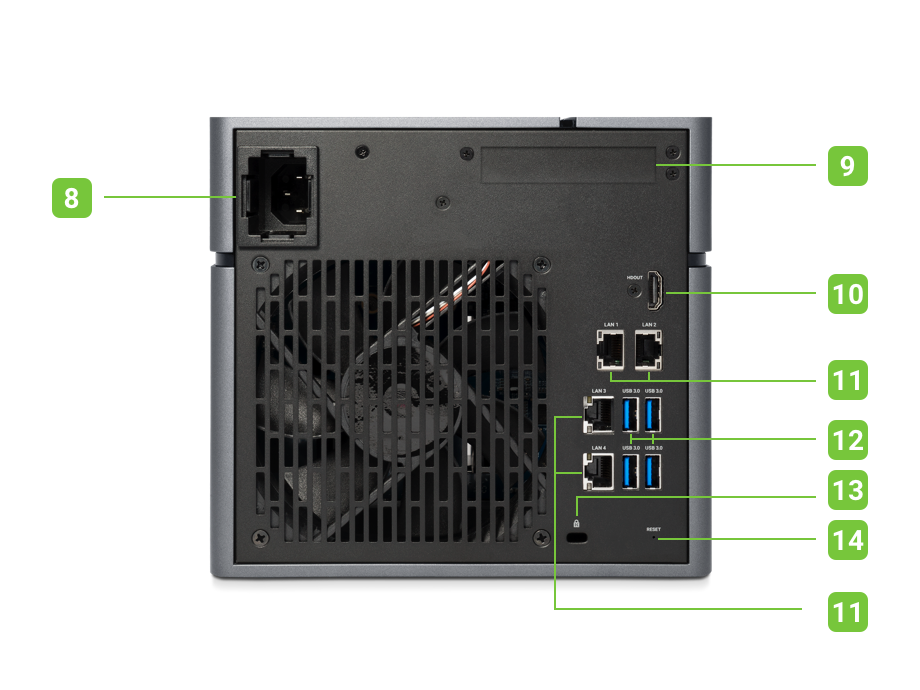

Power Button USB 3.0 Port USB Copy Button LAN Status Expansion Unit Status HDD and SSD Status Service Door Power Port Additional PCIe Slot for Expansion (Gen3 x 8) HDMI Port Gigabit LAN Port USB 3.0 Port Kensington Lock Reset to Factory Default Button

Hardware Specifications

Architecture All-in-one
Storage OS QSM  Specification Details
CPU
Processor Intel® Celeron®
CPU Architecture 64-bit
CPU Frequency Dual-Core 2.9GHz
Memory
System Flash 8GB USB DOM
Memory Module Pre-installed 8GB DDR4 SO-DIMM
Total Memory Slots 2
Memory Expandable up to 32 GB
Notes -
Storage
Drive Bays

3.5" Slot x 4

2.5" Slot x 1
Maximum Drive Bays with Expansion Unit -
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD
Drive Interface

SATA 6Gb/s
(backward compatible with SATA 3Gb/s)
Maximum Internal Raw Capacity 110.72TB
Maximum Raw Capacity with Expansion Units -
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 4 + 3.84 TB drive x 1
  • Capacity may vary by RAID types
External Port
USB 2.0 Port -
USB 3.0 Port 5 (Front: 1, Rear: 4)
HDMI Port 1
Others -
Notes -
Connectivity Port
{0}GbE RJ45 LAN Port 4 (Onboard)
{0}GbE RJ45 LAN Port 2 (Option)
{0}GbE SFP+ LAN Port 2 (Option)
Thunderbolt 3 2 (Option)
{0}Gb SFP+ Fibre Channel -
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port -
Notes -
PCIe Expansion
Gen3x8 Slot 1
Gen3x4 Slot -
Notes For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot -
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 177 x 190 x 235
Chassis Form Factor Tower 4+1 Bay
Net Weight (kg) 3.6
Gross Weight (kg) 4
Notes -
Memory Protection
Cache-to-Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 120mm x 120mm x 1 pcs
Replaceable System Fan -
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter FLEX ATX 200W
Redundant Power Supply -
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption -
British Thermal Unit -
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

RCM

KCC

SASO

EAC
Notes -
Warranty
Standard Warranty {0} years
Notes -
