XCubeSAN

XS5324

Performance, Capacity for Mixed Workloads

CPU

Intel® Xeon® 4-core Processor​

RAM

32 GB DDR4 ECC DIMM ​(up to 512 GB)​​

Active-Active Architecture​

Dual-Active Design​

High Availability​

Fully Redundant Modular Design​​

Optimized Performance and Capacity for Mixed Workloads​

The XCubeSAN 5324 (3.5” 4U 24-bay) is a capacity-demanding hybrid flash storage. Its multi-bay design minimizes enterprise footprint and power consumption while maximizing storage space. Ultra-high performance is designed to be the ideal solution for applications in mission-critical data centers, high-performance computing, virtualization, or media environments.​​

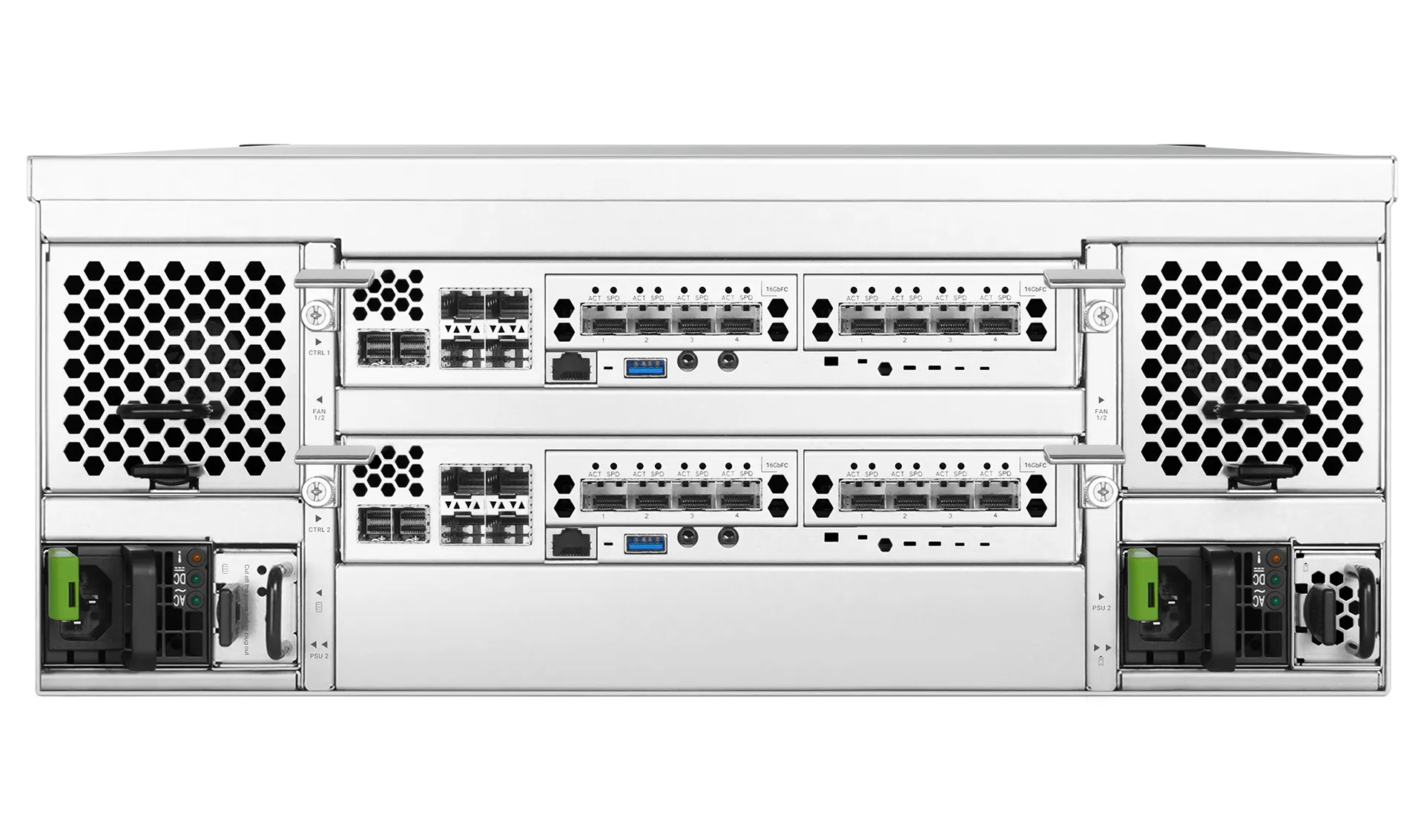

XS5324 Rear Side Magnifying

XEVO Data Management System

XEVO, a flash-based storage management system, minimizes the learning curve and eases maintenance through an intuitive GUI. Data can be accessed in 5 minutes after initialization. XEVO‘s core technology provides the excellence, flexibility, and intelligence needed to simplify all content for a hybrid storage system.​​​

Why QSAN XCubeSAN Arrays?​

Outstanding Performance​

Excellent performance with 20 GB/s and 1.8M IOPS, outstanding scale-up capability up to 11 PB.

Dependable Data Experience​

99.9999% high availability design with no single point of failure, cache-to-flash to protect cache data in power outage.​​

Versatile Connectivity​

Each controller with built-in 4-port 10 GbE and maximum 12 host ports allows​ direct connection to multiple hosts without switches.​​

Modern Simplicity​

Simplify storage management with the intuitive and powerful XEVO storage manager interface.​​

Enclosure Status LED Enclosure Access LED Enclosure Power Button / LED Disk Drive Status LED Disk Drive Power LED USB Port UID (Unique Identifier) Button / LED Power Supply Unit PSU Indicator and Beep Off Button Master / Slave LED (only for dual controllers) Controller Status LED Dirty Cache LED UID (Unique Identifier) LED 12Gb/s SAS Wide Port 10GbE iSCSI (SFP+) Port Management Port Host Card Slot 1 (host card is an optional part) Service Port Console Port USB Port Host Card Slot 2 (host card is an optional part) Reset to Factory Default Button Buzzer Mute Button

System Specifications

Architecture XS5324D: Dual-active controller
XS5324S: Single-upgradeable controller
Storage OS XEVO 2 Specification Details
CPU
Processor Intel® Xeon® 64-bit 4-core (8-core processor models are also available)
Memory
Memory Module Pre-installed 16 GB DDR4 ECC DIMM (per controller)
Total Memory Slots 4 (per controller)
Memory Expandable up to 256 GB (per controller)
Storage
Drive Bays

3.5" Slot x 24
Maximum Drive Bays with Expansion Unit 504
Compatible Drive Type

3.5" & 2.5" SAS, NL-SAS, SED HDD

3.5" & 2.5" SATA(*) HDD

2.5" SAS, SATA(*), SED SSD
Drive Interface

SAS 12 Gb/s, SATA 6 Gb/s(*)
Maximum Internal Raw Capacity 528 TB (calculate 22 TB HDD)
Maximum Raw Capacity with Expansion Units 11,088 TB (calculate 22 TB HDD)
Hot Swappable Drive
Notes

(*) SATA drives only work with single controller systems
Connectivity Port
PCIe Expansion (Gen 3x8 Slot) x 2
{0} GbE RJ45 LAN Port 1 (onboard management port per controller)
{0} GbE SFP+ LAN Port 4 (onboard per controller) / 4 (option)
{0} GbE RJ45 LAN Port 2 (option) / 4 (option)
{0} GbE SFP28 LAN Port 2 (option) / 4 (option)
{0} Gb SFP+ Fibre Channel 2 (option) / 4 (option)
{0} Gb SFP28 Fibre Channel 2 (option)
Expansion and External port
12 Gb/s SAS Wide Port 2 (onboard per controller)
USB Port 1 (front) / 2 (rear)
Others Console Port x 1, Service Port (UPS) x 1
Software Specification
Storage OS XEVO
RAID Type 0 / 1 / 3 / 5 / 6 / 10 / 30 / 50 / 60 / 5EE / 6EE / 50EE / 60EE / N-way mirror
Storage Efficiency Thin provisioning
Software Acceleration SSD cache (option) / Auto tiering (option)
Data Protection Snapshot / Local volume clone
Remote Replication Asynchronous (built-in) / Synchronous (option)
Security HTTPS / SSH / iSCSI CHAP / ISE & SED
Management Web UI / Serial console / RESTful API / S.E.S. / LCM
Appearance
Dimension (H x W x D) (mm) 170.3 x 438 x 515
Net Weight (kg) 25.9
Gross Weight (kg) 28.3
Others
Memory Protection Cache-to-Flash (Supercapacitor Module + Flash Module)
System Fan 4 pcs
Power Supply Unit 850 W x 2 (80 PLUS Platinum)
Power Consumption 648 W
Environment Temperature
Operating Temperature 0°C to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Certification
Certifications CE / FCC / BSMI
Warranty
Standard Warranty System: {0} years
Supercapacitor Module: 1 year
