XCubeSAN

XS3324

Best TCO, Capacity-Demanding Applications

CPU

Intel® Xeon® 4-core Processor

RAM

16 GB DDR4 ECC DIMM (up to 512 GB)

Active-Active Architecture

Dual-Active Design

High Availability

Fully Redundant Modular Design

Best TCO for Capacity Demanding Applications

The XCubeSAN 3324 (3.5" 4U 24-bay) is a capacity-demand hybrid flash storage. Its multi-bay design meets your performance and capacity needs, simplifying your IT infrastructure and reducing costs. Outstanding performance is ideal for modern enterprise applications such as virtualization, media editing, large scale surveillance, and backup.

XEVO Data Management System

XEVO, a flash-based storage management system, minimizes the learning curve and eases maintenance through an intuitive GUI. Data can be accessed in 5 minutes after installation. XEVOs core technology provides the excellence, flexibility, and intelligence needed to simplify all content for a hybrid storage system.

Why QSAN XCubeSAN Arrays?

Outstanding Performance

Excellent performance with 12.8 GB/s and 1.3M IOPS, outstanding scale-up capability up to 11 PB.

Dependable Data Experience

99.9999% high availability design with no single point of failure, cache-to-flash to protect cache data in power outage.

Versatile Connectivity

Each controller with built-in 4-port 10 GbE (SFP+) and maximum 12 host ports allows direct connection to multiple hosts without switches.

Modern Simplicity

Simplify storage management with the intuitive and powerful XEVO storage manager interface.

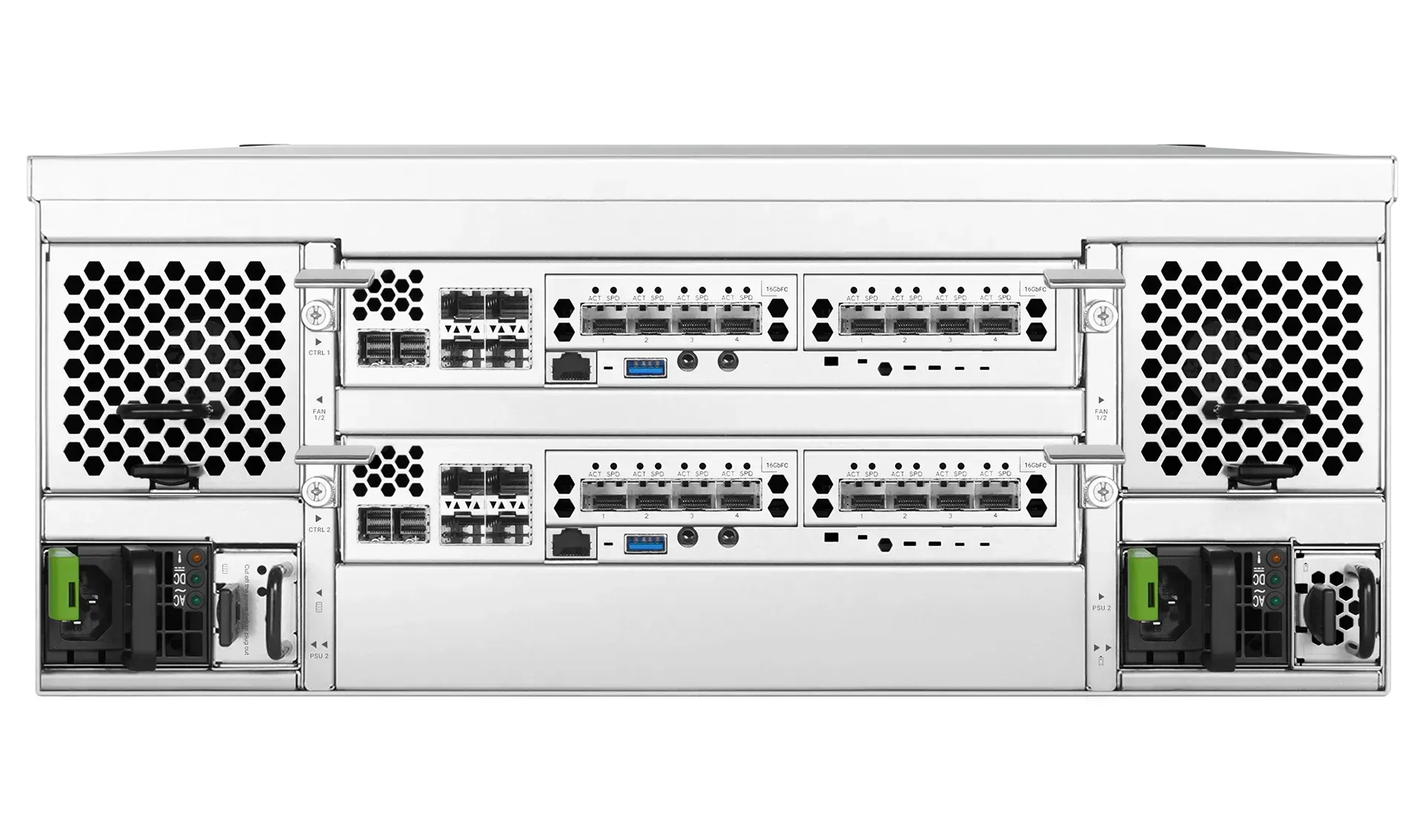

Enclosure Status LED Enclosure Access LED Enclosure Power Button / LED Disk Drive Status LED Disk Drive Power LED USB Port UID (Unique Identifier) Button / LED Power Supply Unit Master / Slave LED (only for dual controllers) Controller Status LED Dirty Cache LED UID (Unique Identifier) LED 12 Gb/s SAS Wide Port 10 GbE iSCSI (SFP+) Port Management Port Host Card Slot 1 (host card is an optional part) Service Port Console Port USB Port Host Card Slot 2 (host card is an optional part) Reset to Factory Default Button Buzzer Mute Button

System Specifications

CPU
Architecture	XS3324D: Dual-active controller XS3324S: Single-upgradeable controller
Storage OS	XEVO 2 Specification Details
Processor	Intel® Xeon® 64-bit 4-core
Memory
Memory Module Pre-installed	8 GB DDR4 ECC DIMM (per controller)
Total Memory Slots	4 (per controller)
Memory Expandable up to	256 GB (per controller)
Storage
Drive Bays	3.5" Slot x 24
Maximum Drive Bays with Expansion Unit	504
Compatible Drive Type	3.5" & 2.5" SAS, NL-SAS, SED HDD 3.5" & 2.5" SATA() HDD 2.5" SAS, SATA(), SED SSD
Drive Interface	SAS 12 Gb/s, SATA 6 Gb/s(*)
Maximum Internal Raw Capacity	528 TB (calculate 22 TB HDD)
Maximum Raw Capacity with Expansion Units	11,088 TB (calculate 22 TB HDD)
Hot Swappable Drive
Notes	(*) SATA drives only work with single controller systems
Connectivity Port
PCIe Expansion	(Gen 3x8 Slot) x 2
1 GbE RJ45 LAN Port	1 (onboard management port per controller)
10 GbE SFP+ LAN Port	4 (onboard per controller) / 4 (option)
10 GbE RJ45 LAN Port	2 (option) / 4 (option)
25 GbE SFP28 LAN Port	2 (option) / 4 (option)
16 Gb SFP+ Fibre Channel	2 (option) / 4 (option)
32 Gb SFP28 Fibre Channel	2 (option)
Expansion and External Port
12 Gb/s SAS Wide Port	2 (onboard per controller)
USB Port	1 (front) / 2 (rear)
Others	Console Port x 1, Service Port (UPS) x 1
Software Specification
Storage OS	XEVO
RAID Type	0 / 1 / 3 / 5 / 6 / 10 / 30 / 50 / 60 / 5EE / 6EE / 50EE / 60EE / N-way mirror
Storage Efficiency	Thin provisioning
Software Acceleration	SSD cache (option) / Auto tiering (option)
Data Protection	Snapshot / Local volume clone
Remote Replication	Asynchronous (built-in) / Synchronous (option)
Security	HTTPS / SSH / iSCSI CHAP / ISE & SED
Management	Web UI / Serial console / RESTful API / S.E.S. / LCM
Appearance
Dimension (H x W x D) (mm)	170.3 x 438 x 515
Net Weight (kg)	25.9
Gross Weight (kg)	28.3
Others
Memory Protection	Cache-to-Flash (Supercapacitor Module + Flash Module) (option)
System Fan	4 pcs
Power Supply Unit	850 W x 2 (80 PLUS Platinum)
Power Consumption	648 W
Environment Temperature
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 50°C
Operating Relative Humidity	20% to 80% non-condensing
Non-operating Relative Humidity	10% to 90%
Certification
Certifications	CE / FCC / BSMI
Warranty
Standard Warranty	System: 3 years Supercapacitor Module: 1 year

Operating System	64bit embedded Linux
Storage Management	RAID level 0 ,1 ,0+1 ,3 ,5 ,6 ,10 ,30 ,50, 60, and N-way mirror RAID EE level 5EE, 6EE, 50EE, and 60EE Flexible storage pool ownership Thin Provisioning (QThin) with space reclamation Global hot spares Write-through and write-back cache policy Online disk roaming Spreading RAID disk drives across enclosures Background I/O priority setting Instant RAID volume availability Fast RAID rebuild Online storage pool expansion Online volume extension Online volume migration¹ Auto volume rebuilding Instant volume restoration Online RAID level migration SED & ISE drive support Video editing mode for enhanced performance Disk drive health check and S.M.A.R.T. attributes Storage pool parity check and media scan for disk scrubbing SSD wear lifetime indicator Disk drive firmware batch update QSLIfe to monitor and analyze the activity of SSDs QSRAID for SSD endurance optimization Multiple volume creation Volume QoS (Quality of Service)
iSCSI Host Connectivity	Proven QSOE 2.0 optimization engine CHAP & mutual CHAP authentication SCSI-3 PR (Persistent Reservation for I/O fencing) support iSNS support VLAN (Virtual LAN) support Jumbo frame (9,000 bytes) support Up to 256 iSCSI targets Up to 512 hosts per controller Up to 1,024 sessions per controller
Fibre Channel Host Connectivity	Proven QSOE 2.0 optimization engine FCP-2 & FCP-3 support Auto detect link speed and topology Topology supports point-to-point² and loop Up to 256 hosts per controller
High Availability	Dual-Active (Active/Active) SAN controllers Cache mirroring through NTB bus ALUA support Management port seamless failover Fault-tolerant and redundant modular components for SAN controller, PSU, FAN module, and dual port disk drive interface Multipath I/O and load balancing support (MPIO, MC/S, Trunking, and LACP) Firmware update with zero system downtime
Security	Secured Web (HTTPS), SSH (Secure Shell) iSCSI Force Field to protect from mutant network attack iSCSI CHAP & mutual CHAP authentication SED & ISE drive support
Storage Efficiency	Thin Provisioning (QThin) with space reclamation
Networking	DHCP, Static IP, NTP, Trunking, LACP, VLAN, Jumbo frame (up to 9,000 bytes)
Advanced Data Protection	Snapshot (QSnap), block-level, differential backup Writeable snapshot support Manual or schedule tasks Up to 64 snapshots per volume Up to 64 volumes for snapshot Up to 4,096 snapshots per system Snapshot recycle bin Remote Replication (QReplica) Auto remote replication without doing configurations 1 Step Local-to-Remote Asynchronous, block-level, differential backup based on snapshot technology Traffic shaping for dynamic bandwidth controller Manual or schedule tasks Synchronous, block-level, always synchronize based on the recorded fracture log Traffic shaping for dynamic bandwidth controller Manual or schedule tasks Volume clone for local replication Auto local clone without doing configurations Configurable N-way mirroring Integration with Windows VSS (Volume Shadow Copy Service) Instant volume restoration Cache-to-Flash memory protection M.2 flash module Power module: BBM (Battery Backup Module) Support USB UPS and network UPS with SNMP management
Virtualization Certification	Server Virtualization & Clustering Latest VMware vSphere certification VMware VAAI for iSCSI &, FC Windows Server 2016, 2012 R2 Hyper-V certification Microsoft ODX Latest Citrix XenServer certification
Easy Management	USB LCM³, serial console support, online firmware update Intuitive Web management UI, secured web (HTTPS), SSH (Secured Shell), LED indicators S.E.S. support, S.M.A.R.T. support, Wake-on-LAN, and Wake-on-SAS Grouping batch operation for host and protection groups QReport generates performance and capacity analytics XFinder utility support to easy find storage system RESTful API support QAuth for authorizations of user’s responsibility
Green & Energy Efficiency	80 PLUS Platinum power supply Wake-on-LAN to turn on or wake up the system only when necessary Auto disk spin-down
Host Operating Systems Support	Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016, 2019 SLES 10, 11, 12, 15 RHEL 5, 6, 7, 8 CentOS 6, 7, 8 Solaris 10, 11 FreeBSD 9, 10, 11, 12 Mac OS X 10.11 or later
Note	The feature is based on RAID level migration of disk groups on the fly in thick provisioning pools. 16Gb Fibre Channel only supports Point-to-Point topology. The function is optional and is not included in the default package.
