XCubeNAS

XN7008RE

CPU

Intel® Core™ i3 3.9GHz Dual-Core Processor

RAM

8GB DDR4 U-DIMM (Max 64GB)

Scalability

Connect up to 8 Expansion Units

Flexible PCIe Expansion

Support 12Gb/s SAS Adapter Card

Easy File Access with Quick Connection

Web Finder

No need to install any applications, you can easily find your XCubeNAS.

Find your NAS

XFinder

XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.

Find your NAS

Best Enterprise-Level Encryption Solution for Entry Enterprise and SMB

SED

Support self-encrypting drive technology

Smart Snapshot Retention

More protection but less resources

Rsync

Data copies can be distributed to your trusted storage locations through real-time remote backup.

AES256 Encryption

Pool encryption fulfill military regulations

Quota

Effective management, optimize allocating

Storage for Virtualization

Compatible with virtualization standard for VMware® vSphere™, Veeam™, Microsoft® Hyper-V.

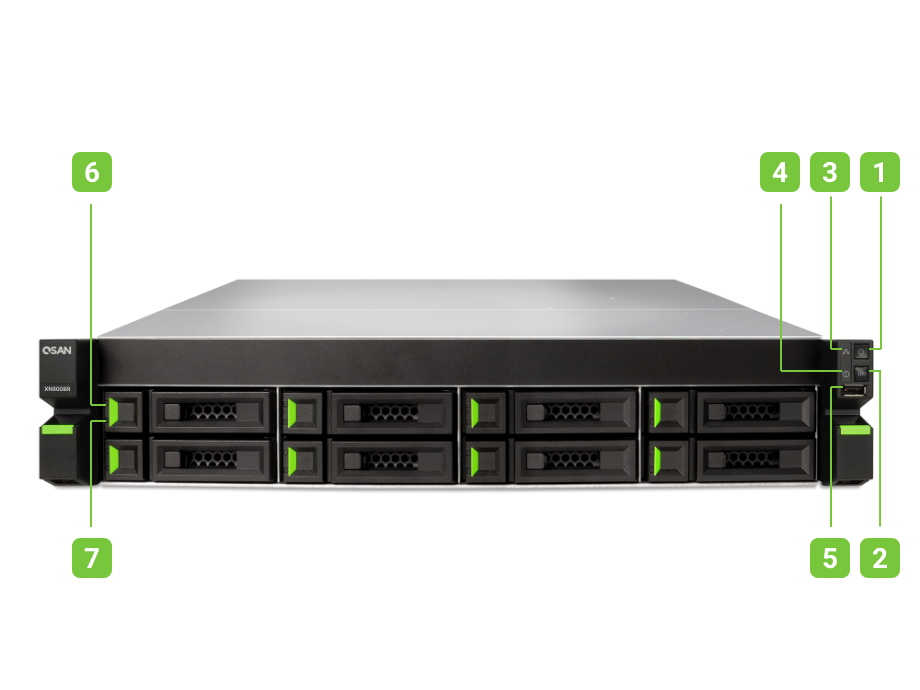

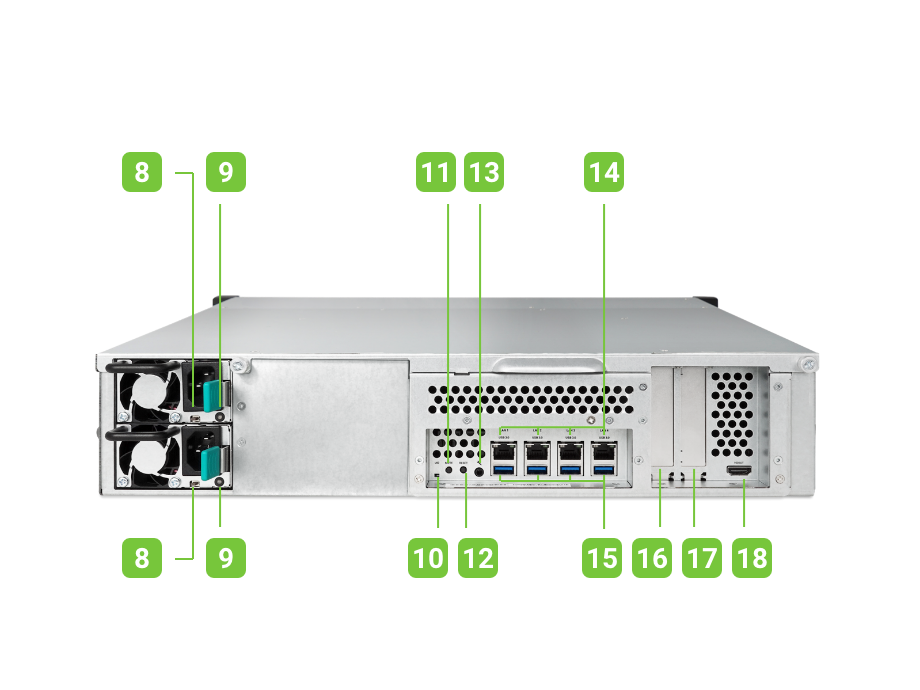

Power Button/LED Indicator for Power Status Unique Identifier (UID) Button/LED Indicator System Access LED Indicator System Status LED Indicator USB 2.0 Port Disk Drive Power LED Indicator Disk Drive Status LED Indicator Power Supply Unit – PSU Indicator and Beep Off Button Power Supply Unit – Power Port Unique Identifier (UID) LED Indicator Mute Button Reset Button Console Port Gigabit LAN Port USB 3.0 Port Additional PCIe Slot for Expansion (Gen3 x 8) Additional PCIe Slot for Expansion (Gen3 x 4) HDMI Port

Hardware Specifications

Architecture All-in-one
Storage OS QSM Specification Details
CPU
Processor Intel® Core™ i3
CPU Architecture 64-bit
CPU Frequency Dual-Core 3.9GHz
Memory
System Flash 8GB USB DOM
Memory Module Pre-installed 8GB DDR4 U-DIMM
Total Memory Slots 4
Memory Expandable up to 64 GB
Notes -
Storage
Drive Bays

3.5" Slot x 8
Maximum Drive Bays with Expansion Unit 200
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD
Drive Interface

SATA 6Gb/s
(backward compatible with SATA 3Gb/s)
Maximum Internal Raw Capacity 160TB
Maximum Raw Capacity with Expansion Units 8,320TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 8
  • Capacity may vary by RAID types
External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port 4 (Rear)
HDMI Port 1
Others Console Port x1
Notes -
Connectivity Port
{0}GbE RJ45 LAN Port 4 (Onboard)
{0}GbE RJ45 LAN Port 2 (Option)
{0}GbE SFP+ LAN Port 2 (Option)
Thunderbolt 3 2 (Option)
{0}Gb SFP+ Fibre Channel -
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port 2 (Option)
Notes For more information, please refer to accessory book
PCIe Expansion
Gen3x8 Slot 1
Gen3x4 Slot 1
Notes For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot -
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 88.5 x 438 x 510
Chassis Form Factor 19" Rackmount 2U 8 Bay
Net Weight (kg) 13.5
Gross Weight (kg) 14.9
Notes -
Memory Protection
Cache-to-Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 60mm x 60mm x 3 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 250W x2
Redundant Power Supply
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 263 W (Access)
122 W (HDD Hibernation)
British Thermal Unit 895 BTU/hr (Access)
417 BTU/hr (HDD Hibernation)
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

SASO

EAC

RCM
Notes -
Warranty
Standard Warranty {0} years
Notes -
