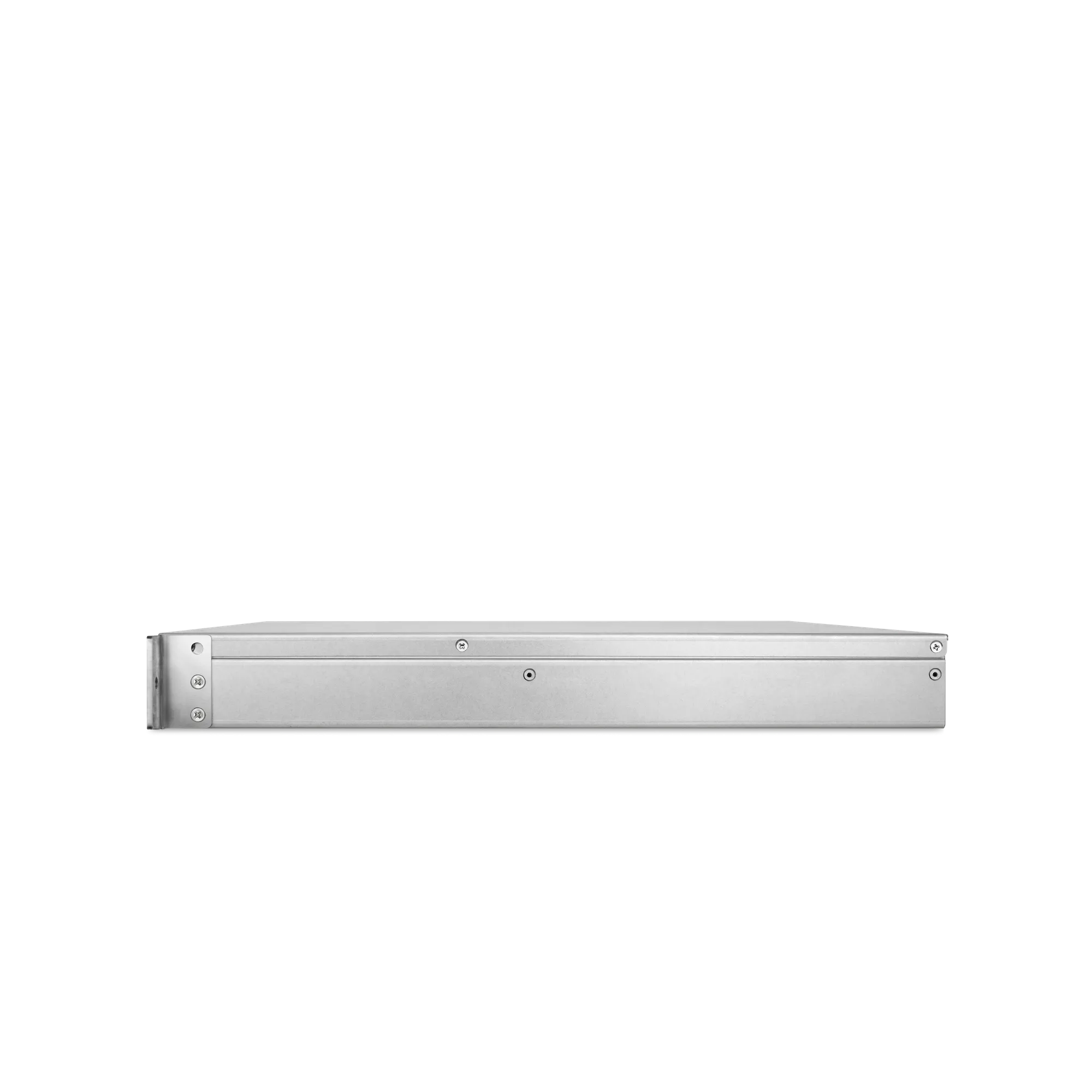

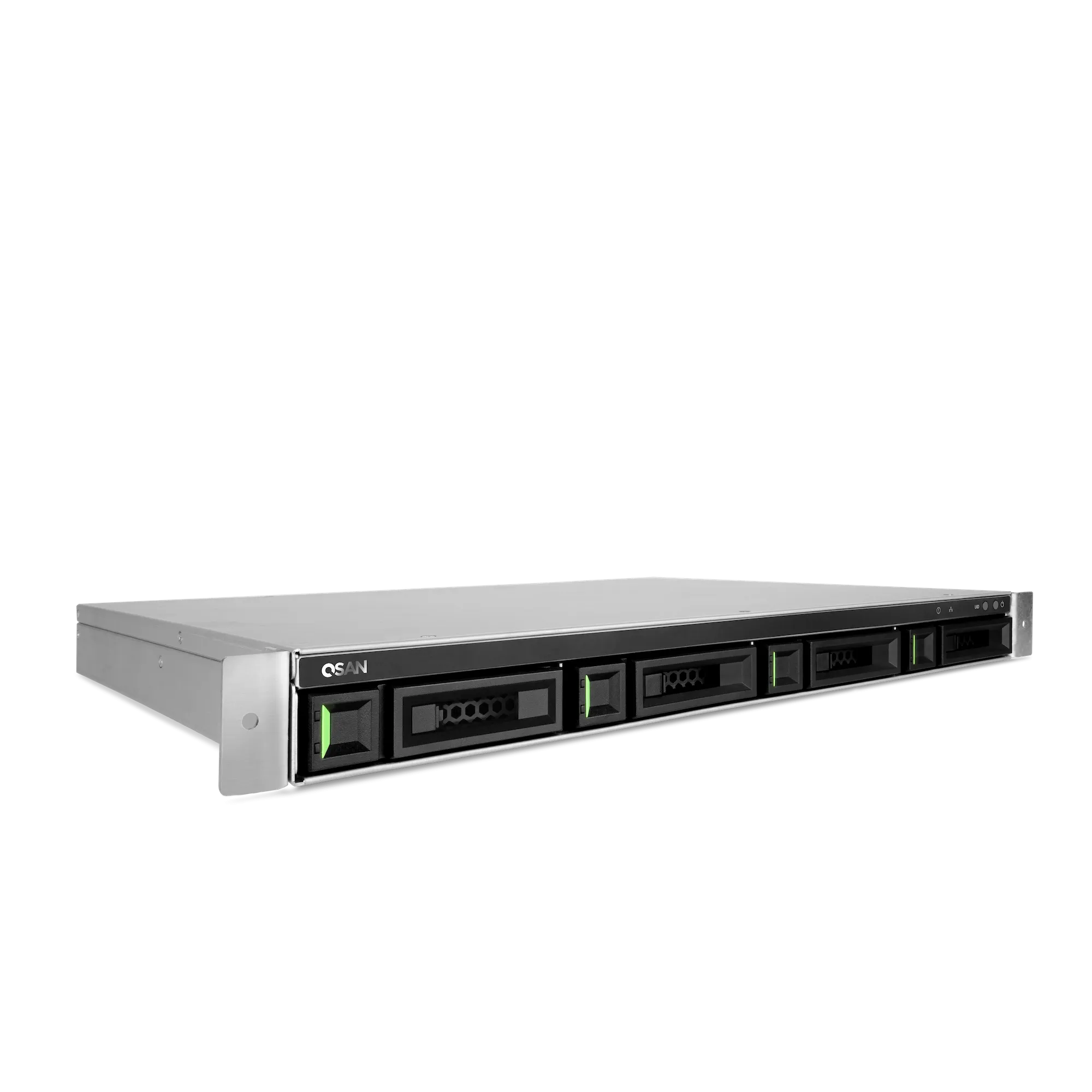

XCubeNAS

XN3004R

CPU

Intel® 64-bit Dual-Core

RAM

4GB DDR3 (MAX 8GB)

Ready for High speed internet

Support 10 GbE RJ45 or SFP+

Maximum Capacity

Up to 64TB

Why Do You Need XN3004R

Entry Level Enterprise Storage for Everyone

The XN3004R provides enterprise-class features such as unified storage systems and data compression at an affordable price. Support cloud synchronization and multi-point data backup. Double protection of software and hardware effectively prevents the risk of data theft and tampering.

NVR Storage Solution

The NVR software can view, play back, manage, and store multiple network cameras simultaneously through the iSCSI connection of the XN3004R. And with online compression, optimize storage space usage, greatly improve the monitoring image retention period, and provide an affordable and reliable storage solution.

Light Private Cloud Storage

QSM's built-in web-based file manager and remote backup greatly improve the efficiency of data and backup management. In addition, the XN3004R provides advanced storage technology and security solutions to enhance data security and more efficient use of storage space within a limited budget.

Easy Deployment, Easy to Operate

The QSM operating system interface is simple and easy to operate, making settings such as file sharing and permissions easy. Through archival services and cloud synchronization, you can connect members of the company department to provide enterprise-level file sharing and backup at the entry price.

QSM Live Demo

Enterprise Storage Technology

Enterprise Storage Function

QSM provides enterprise-class storage capabilities, such as Unified Storage and Compression, enabling users to deploy elastically and increase storage space efficiency.

XMirror

XMirror supports NAS multi-point backup and permission backup. It can synchronize folder or logical volume content between multiple XCubeNAS devices. When an accident occurs, it can use the backup on other devices to achieve disaster recovery, and can easily design multi-layer backup. Provide the best protection.

Cloud Synchronization

Use XN3004R to perform file fast reading and writing on the local end, and transmit it to the cloud through cloud synchronization function, make full use of edge calculation, speed up data processing and transmission speed, and reduce delay to achieve maximum efficiency.

Software and Hardware Double Protection

Files written under single-write multiple read (WORM) protection can only be read for a defined period of time, protecting data from ransomware attacks. And the hard disk self-encryption (SED) function, even if the disk itself is stolen, still have to use a dedicated authentication key to access, without worrying about the risk of data leakage.

Learn More about QSM

Recommended Application Areas: Digital Monitoring, Data Sharing and Backup Management

Small Shopping Malls

Small and Medium-Sized Schools

Corporate Departments

Studios

Easy File Access with Quick Connection

Web Finder

No need to install any applications, you can easily find your XCubeNAS.

Find your NAS

XFinder

XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.

Find your NAS

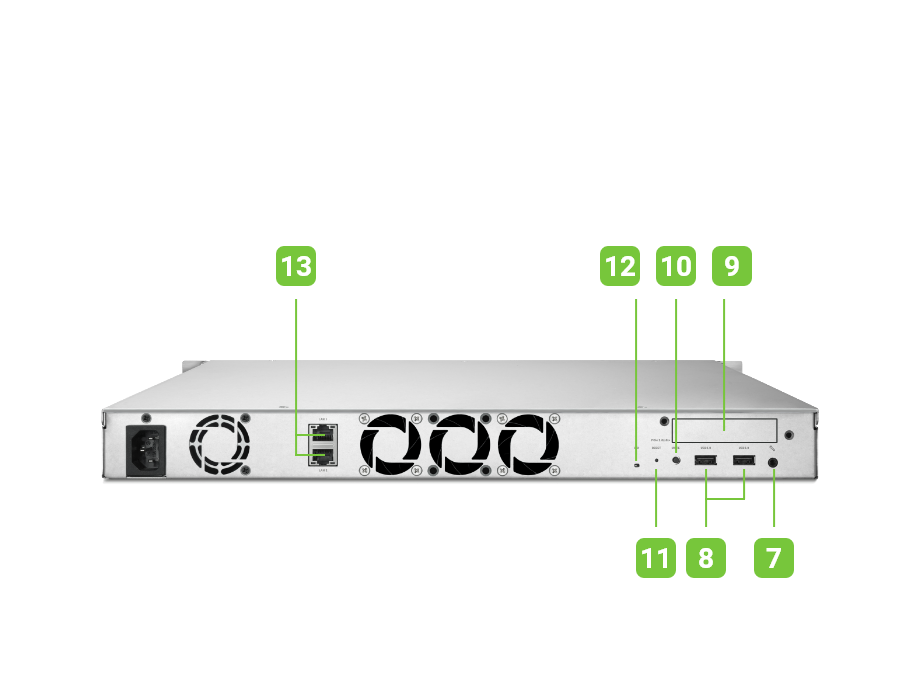

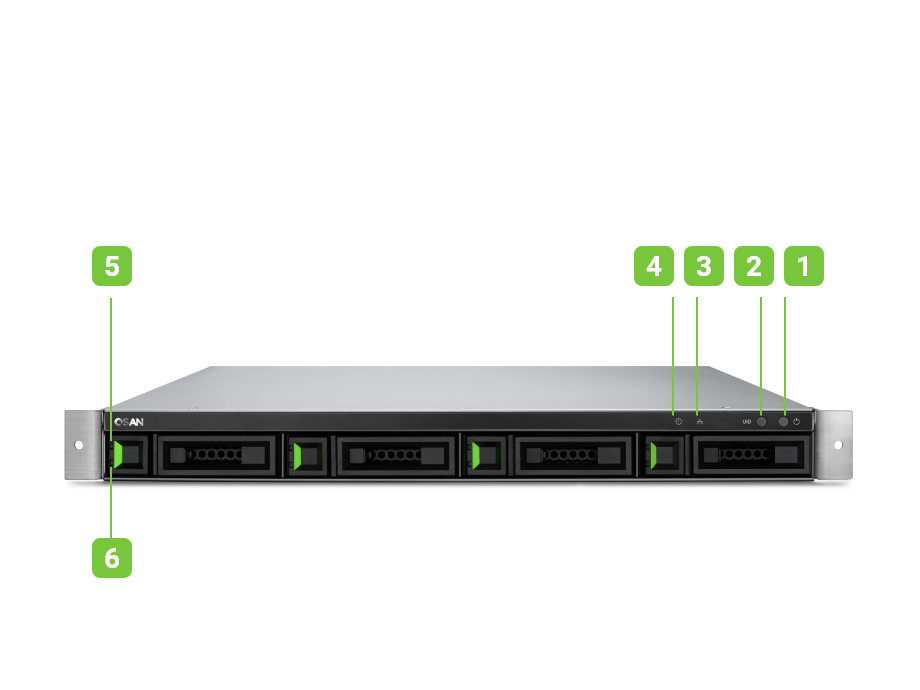

Power Button/LED Indicator for Power Status Unique Identifier (UID) Button/LED Indicator System Access LED Indicator System Status LED Indicator Disk Drive Power LED Indicator Disk Drive Status LED Indicator Console Port USB 2.0 Port PCIe Gen2x8 slot Mute Button Reset Button Unit Identification (UID) LED Indicator 1GbE LAN Port

Hardware Specifications

Architecture Single Controller
Storage OS QSM  Specification Details
CPU
Processor Intel®
CPU Architecture 64-bit
CPU Frequency Dual-Core
Memory
System Flash 8GB USB DOM
Memory Module Pre-installed 4GB DDR3L SO-DIMM
Total Memory Slots 1
Memory Expandable up to 8GB
Notes -
Storage
Drive Bays

3.5" Slot x 4
Maximum Drive Bays with Expansion Unit -
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD
Drive Interface

SATA 6Gb/s (backward compatible with SATA 3Gb/s)
Maximum Internal Raw Capacity 80TB
Maximum Raw Capacity with Expansion Units -
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 4
  • Capacity may vary by RAID types
External Port
USB 2.0 Port 2 (Rear)
USB 3.0 Port -
HDMI Port -
Others Console Port x 1
Notes -
Connectivity Port
{0}GbE RJ45 LAN Port 2 (Onboard)
{0}GbE RJ45 LAN Port 2 (Option)
{0}GbE SFP+ LAN Port 2 (Option)
Thunderbolt 3 -
{0}Gb SFP+ Fibre Channel -
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port -
Notes -
PCIe Expansion
Gen3x8 Slot -
Gen3x4 Slot -
Notes Gen2x8 Slot x1, For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot -
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 44 x 438 x 370
Chassis Form Factor 12″ Rackmount 1U 4 Bay
Net Weight (kg) 5.97
Gross Weight (kg) 9.9
Notes -
Memory Protection
Cache-to-Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 40mm x 40mm x 2 pcs
Replaceable System Fan -
Power Recovery -
Scheduled Power On/Off -
Wake on LAN/WAN -
Power Supply Unit / Adapter FLEX ATX 200W
Redundant Power Supply -
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 105 W (Access)
72 W (HDD Hibernation)
British Thermal Unit 360 BTU/hr (Access)
244 BTU/hr (HDD Hibernation)
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40 °C
Storage Temperature -10 °C to 50 °C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

SASO

EAC

RCM
Notes -
Warranty
Standard Warranty {0} years
Notes -
