XCubeSAN

XS3326

Leading Density, Uncompromised Performance

CPU

Intel® Xeon® 4-core Processor

RAM

16 GB DDR4 ECC DIMM (up to 512 GB)

Performance Density

World's 1st 2U-26 Bay Design

Active-Active Architecture

Dual-Active Design

Leading Density with Uncompromised Performanc

The XCubeSAN 3326 (2.5” 2U 26-bay) is the industry’s first high density hybrid flash storage. It offers 8% more capacity than the common 2U 24-bay products on the market. This can further lower the cost per TB, minimize IT rack space, and generate smaller and greener footprint. Outstanding performance is ideal for modern enterprise applications such as virtualization, media editing, large scale surveillance, and backup.

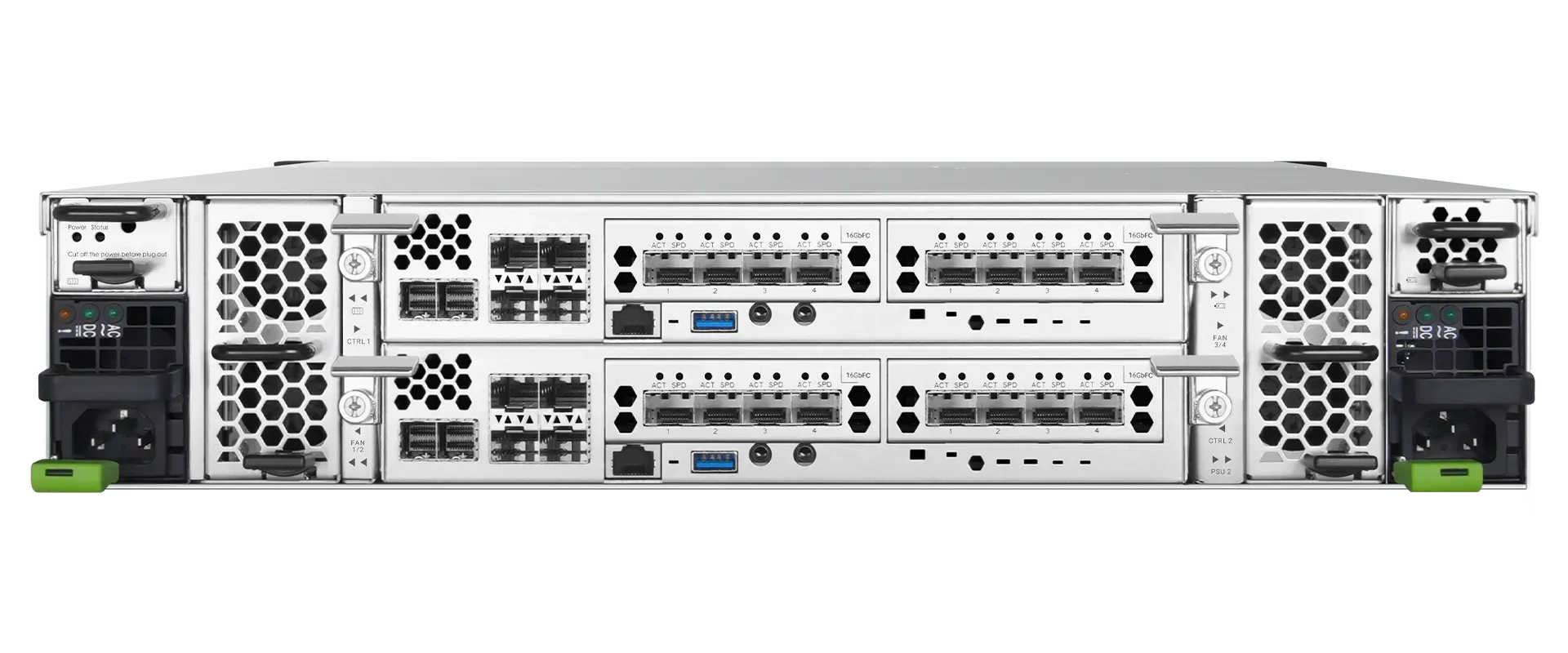

XF3324 Rear Side Magnifying

XEVO Data Management System

XEVO, a flash-based storage management system, minimizes the learning curve and eases maintenance through an intuitive GUI. Data can be accessed in 5 minutes after installation. XEVO‘s core technology provides the excellence, flexibility, and intelligence needed to simplify all content for a hybrid storage system.???

Why QSAN XCubeSAN Arrays??

Outstanding Performance?

Excellent performance with 12.8 GB/s and 1.3M IOPS, outstanding scale-up capability up to 16.7 PB.

Dependable Data Experience?

99.9999% high availability design with no single point of failure, cache-to-flash to protect cache data in power outage.??

Versatile Connectivity?

Each controller with built-in 4-port 10 GbE (SFP+) and maximum 12 host ports allows? direct connection to multiple hosts without switches.??

Modern Simplicity?

Simplify storage management with the intuitive and powerful XEVO storage manager interface.??

Enclosure Status LED Enclosure Access LED Enclosure Power Button / LED Disk Drive Status LED Disk Drive Power LED USB Port UID (Unique Identifier) Button / LED Power Supply Unit Master / Slave LED (only for dual controllers) Controller Status LED Dirty Cache LED UID (Unique Identifier) LED 12 Gb/s SAS Wide Port 10 GbE iSCSI (SFP+) Port Management Port Host Card Slot 1 (host card is an optional part) Service Port Console Port USB Port Host Card Slot 2 (host card is an optional part) Reset to Factory Default Button Buzzer Mute Button

System Specifications

Architecture XS3326D: Dual-active controller
XS3326S: Single-upgradeable controller
Storage OS XEVO 2 Specification Details
CPU
Processor Intel® Xeon® 64-bit 4-core
Memory
Memory Module Pre-installed 8 GB DDR4 ECC DIMM (per controller)
Total Memory Slots 4 (per controller)
Memory Expandable up to 256 GB (per controller)
Storage
Drive Bays

2.5" Slot x 26

Maximum Drive Bays with Expansion Unit 546
Compatible Drive Type

2.5" SAS, NL-SAS, SED HDD

2.5" SATA(*) HDD

2.5" SAS, SATA(*), SED SSD

Drive Interface

SAS 12 Gb/s, SATA 6 Gb/s(*)

Maximum Internal Raw Capacity 798 TB (calculate 30.72 TB SSD)
Maximum Raw Capacity with Expansion Units 16,773 TB (calculate 30.72 TB SSD)
Hot Swappable Drive
Notes

(*) SATA drives only work with single controller systems

Connectivity Port
PCIe Expansion (Gen 3x8 Slot) x 2
{0} GbE RJ45 LAN Port 1 (onboard management port per controller)
{0} GbE SFP+ LAN Port 4 (onboardper controller) / 4 (option)
{0} GbE RJ45 LAN Port 2 (option) / 4 (option)
{0} GbE SFP28 LAN Port 2 (option) / 4 (option)
{0} Gb SFP+ Fibre Channel 2 (option) / 4 (option)
{0} Gb SFP28 Fibre Channel 2 (option)
Expansion and External port
12 Gb/s SAS Wide Port 2 (onboard per controller)
USB Port 1 (front) / 2 (rear)
Others Console Port x 1, Service Port (UPS) x 1
Software Specification
Storage OS XEVO
RAID Type 0 / 1 / 3 / 5 / 6 / 10 / 30 / 50 / 60 / 5EE / 6EE / 50EE / 60EE / N-way mirror
Storage Efficiency Thin provisioning
Software Acceleration SSD cache (option) / Auto tiering (option)
Data Protection Snapshot / Local volume clone
Remote Replication Asynchronous (built-in) / Synchronous (option)
Security HTTPS / SSH / iSCSI CHAP / ISE & SED
Management Web UI / Serial console / RESTful API / S.E.S. / LCM
Appearance
Dimension (H x W x D) (mm) 88 x 438 x 491
Net Weight (kg) 16.3
Gross Weight (kg) 18.6
Others
Memory Protection Cache-to-Flash (Supercapacitor Module + Flash Module)
System Fan 4 pcs
Power Supply Unit 850 W x 2 (80 PLUS Platinum)
Power Consumption 429 W
Environment Temperature
Operating Temperature 0°C to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Certification
Certifications CE / FCC / BSMI
Warranty
Standard Warranty System: {0} years
Supercapacitor Module: 1 year
