XCubeNXT

XN8024D

The best large-scale storage and multi-function data center for small and medium-sized enterprises.

CPU

Intel ® Xeon ® Quad-Core Processor

RAM

16GB DDR4 ECC DIMM (Max 128GB)

Network

Built-in 10GbE Solution

Easy Maintenance

Modularized Hardware Platform Design

Easy File Access with Quick Connection

Easy File Access with Quick Connection

No need to install any applications, you can easily find your XCubeNAS.

Find your NAS

XFinder

XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.

Find your NAS

SMEs Budget Midrange Value

Scalable

Ultra-high scalability. Make cost-effective planning in the initial stage of expansion. No need to stop any services.

Integrated

Lightly integrated with advanced technology. Optimal combination of performance and cost consideration.

Mature

More than 10 years' experience in Mid-range storage business. Continues to provide reliable storage solution and service to customers.

Performance

Provides many tools to accelerate application execution efficiency

Laborless

Entire installation process within five minutes. , Easily monitor the entire QSAN product with one system with XInsight.

Enterprise-Grade

Secured, centralized repository and storage efficiency for business information.

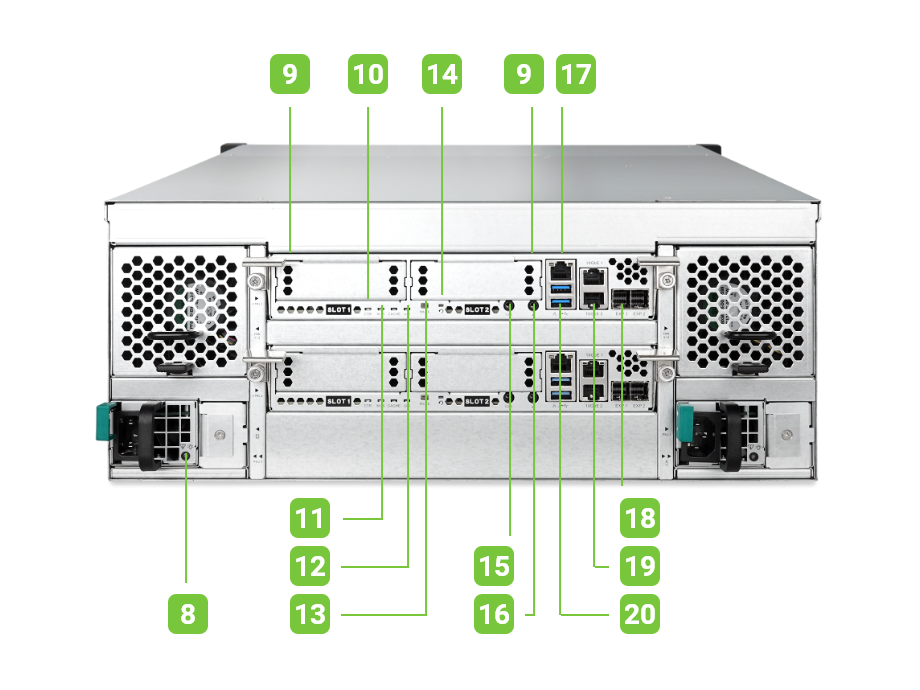

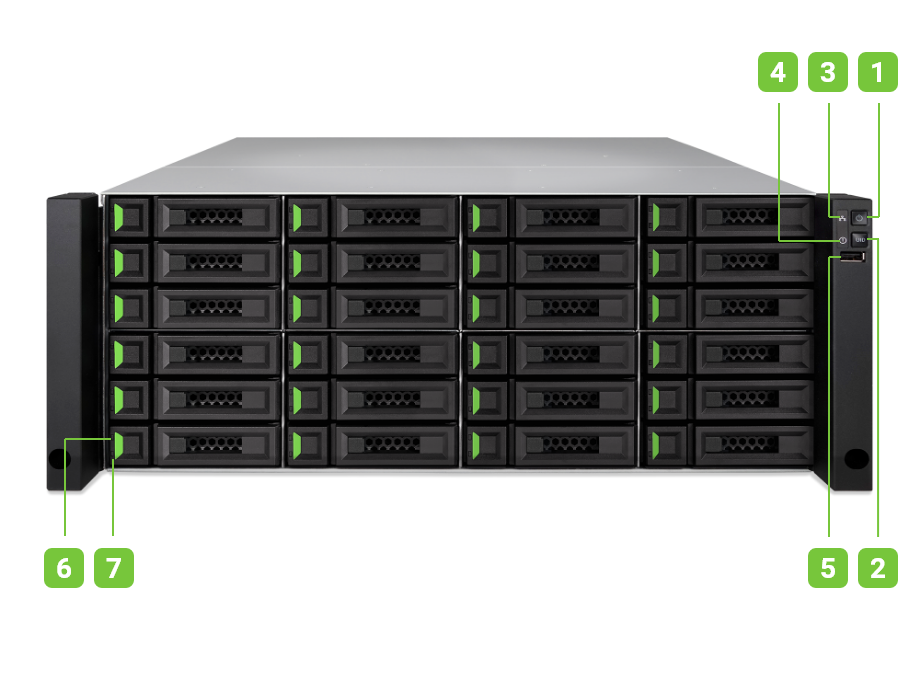

Power Button/LED Indicator for Power Status Unique Identifier (UID) Button/LED Indicator System Access LED Indicator System Status LED Indicator USB 2.0 Port Disk Drive Power LED Indicator Disk Drive Status LED Indicator Power Supply Unit – PSU Indicator and Beep Off Button Additional Host Card Expansion Slot Controller Status LED Master/Slave LED Unique Identifier (UID) LED Indicator Mute Button Reset Button Console Port Service Port Gigabit LAN Port 12Gb/s SAS Wide Port 10GbE LAN Port USB 3.0 Port

Hardware Specifications

ArchitectureActive-Active dual-controller
Storage OSQSM 3 Specification Details
CPU
ProcessorIntel® Xeon®
CPU Architecture64-bit
CPU FrequencyQuad-Core (Also support 8 core model)
Memory
System Flash16GB USB DOM
Memory Module Pre-installed16GB DDR4 ECC DIMM (per controller)
Total Memory Slots4 (per controller)
Memory Expandable up to128GB (per controller)
Notes-
Storage
Drive Bays

3.5" Slot x 24

Maximum Drive Bays with Expansion Unit432
Compatible Drive Type

3.5" SAS HDD

3.5" SAS SED HDD

3.5" NL-SAS HDD

3.5" NL-SAS SED HDD

2.5" SAS SSD

2.5" SAS SED SSD

2.5" SATA SSD

2.5" SATA SED SSD

2.5" SAS HDD

2.5" SAS SED HDD

2.5" NL-SAS HDD

2.5" NL-SAS SED HDD

Drive Interface

SAS 12Gb/s

Maximum Internal Raw Capacity384TB
Maximum Raw Capacity with Expansion Units6096TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 16
  • Capacity may vary by RAID types
  • In dual-controller system, 2.5”SATA HHD need 6G MUX board
External Port
USB 2.0 Port1 (Front)
USB 3.0 Port2 (Rear)
HDMI Port-
OthersUPS Port x1
Controller port x 1
Notes-
Connectivity Port
{0}GbE RJ45 LAN Port1 (Onboard)
{0}GbE RJ45 LAN Port2 (Onboard)
2 iSCSI (Option: HQ-10G2T)
{0}GbE SFP+ LAN Port4 iSCSI (Option: HQ-10G4S2)
Thunderbolt 3-
{0}GbE SFP28 LAN Port2 iSCSI (Option: RHCE25P2)
{0}Gb SFP+ Fibre Channel4 FCP (Option: HQ-16F4S2)
2 FCP (Option: HQ-16F2S2)
{0}Gb SFP28 Fibre Channel2 FCP (Option: RHCF32P2)
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

RHCE25P2, HQ-16F2S2, RHCF32P2 Option card will be launch in the 4th quarter of 2020

Expansion Port
12Gb/s SAS Wide Port2 (Onboard)
Notes-
PCIe Expansion
Gen3x8 Slot-
Gen3x4 Slot-
Notes-
Host Card Expansion
Gen3x8 Slot1
Gen2x4 Slot1
NotesGen2x4 slot provides 20Gb bandwidth
Appearance
Dimension (H x W x D) (mm)170.3 x 438 x 515
Chassis Form Factor19" Rackmount 4U 24 Bay
Net Weight (kg)28.1
Gross Weight (kg)32.3
Notes-
Memory Protection
Cache-to-Flash Module
Battery Backup Module + Flash Module-
NotesDoes not need Battery Backup Module
Others
System Fan4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off-
Wake on LAN/WAN
Power Supply Unit / Adapter770W/850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage100V-240V
Power Frequency50-60 Hz, Single Phase
Power Consumption648W
British Thermal Unit2,211BTU
LCM Support
Notes-
Environment Temperature
Operating Temperature0 to 40°C
Storage Temperature-10°C to 50°C
Operating Relative Humidity20% to 80% non-condensing
Non-operating Relative Humidity10% to 90%
Notes-
Certification
Certifications

CE

FCC

CCC

BSMI

VCCI

KCC

Notes-
Warranty
Standard Warranty{0} years
Notes-
