XCubeNXT

XN8026D

CPU

Intel ® Xeon ® Quad-Core Processor

RAM

16GB DDR4 ECC DIMM (Max 128GB)

Performance Density

2U-26 Bay Design

Active-Active Architecture

Dual-Active Design

Easy File Access with Quick Connection

Easy File Access with Quick Connection

No need to install any applications, you can easily find your XCubeNXT.

Find your NAS

XFinder

XFinder is a desktop utility that searches for QSAN XCubeNXT devices in the local area network.

Find your NAS

SMEs Budget Midrange Value

Scalable

Ultra-high scalability. Make cost-effective planning in the initial stage of expansion. No need to stop any services.

Integrated

Lightly integrated with advanced technology. Optimal combination of performance and cost consideration.

Mature

More than 10 years' experience in Mid-range storage business. Continues to provide reliable storage solution and service to customers.

Performance

Provides many tools to accelerate application execution efficiency

Laborless

Entire installation process within five minutes. , Easily monitor the entire QSAN product with one system with XInsight.

Enterprise-Grade

Secured, centralized repository and storage efficiency for business information.

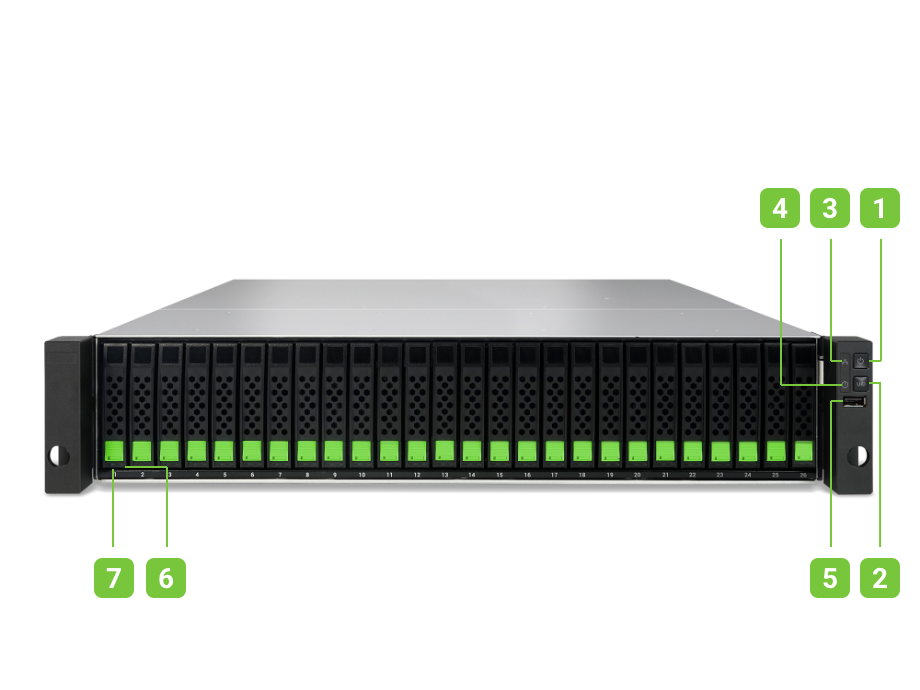

Enclosure Power Button / LED Unique Identifier (UID) Button/LED Indicator Enclosure Access LED Enclosure Status LED USB Port Disk Drive Power LED Indicator Disk Drive Status LED Indicator Power Supply Unit – PSU Indicator and Beep Off Button Controller Status LED Master / Slave LED (only for dual controllers) Dirty Cache LED Unique Identifier (UID) LED Indicator Host Card Slot 1 (host card is an optional part) Host Card Slot 2 (host card is an optional part) Buzzer Mute Button Reset to Factory Default Button Management Port Console Port Service Port USB Port 10GbE iSCSI Port 12Gb/s SAS Wide Port

Hardware Specifications

ArchitectureActive-Active dual-controller
Storage OSQSM 3 Specification Details
CPU
ProcessorIntel® Xeon®
CPU Architecture64-bit
CPU FrequencyQuad-Core (Also support 8 core model)
Memory
System Flash16GB USB DOM
Memory Module Pre-installed16GB DDR4 ECC DIMM (per controller)
Total Memory Slots4 (per controller)
Memory Expandable up to128GB (per controller)
Notes-
Storage
Drive Bays

2.5" Slot x 26

Maximum Drive Bays with Expansion Unit434
Compatible Drive Type

2.5" SATA SSD / SATA SED SSD (*), 2.5" SAS HDD / SAS SED HDD, 2.5" NL-SAS HDD / NL-SAS SED HDD

(*) In dual-controller system, 2.5”SATA HHD need 6G MUX board

Drive Interface

SAS 12Gb/s and SATA 6Gb/s

(backward compatible with SAS 6Gb/s and SATA 3Gb/s)

Maximum Internal Raw Capacity399TB
Maximum Raw Capacity with Expansion Units7,743TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 16
  • Capacity may vary by RAID types
  • In dual-controller system, 2.5”SATA HHD need 6G MUX board
External Port
USB 2.0 Port1 (Front)
USB 3.0 Port2 (Rear)
HDMI Port-
OthersUPS Port x1
Controller port x 1
Notes-
Connectivity Port
{0}GbE RJ45 LAN Port1 (Onboard)
{0}GbE RJ45 LAN Port2 (Onboard)
2 iSCSI (Option: HQ-10G2T)
{0}GbE SFP+ LAN Port4 iSCSI (Option: HQ-10G4S2)
Thunderbolt 3-
{0}GbE SFP28 LAN Port2 iSCSI (Option: RHCE25P2)
{0}Gb SFP+ Fibre Channel4 FCP (Option: HQ-16F4S2)
2 FCP (Option: HQ-16F2S2)
{0}Gb SFP28 Fibre Channel2 FCP (Option: RHCF32P2)
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

RHCE25P2, HQ-16F2S2, RHCF32P2 Option card will be launch in the 4th quarter of 2020

Expansion Port
12Gb/s SAS Wide Port2 (Onboard)
Notes-
PCIe Expansion
Gen3x8 Slot-
Gen3x4 Slot-
Notes-
Host Card Expansion
Gen3x8 Slot1
Gen2x4 Slot1
NotesGen2x4 slot provides 20Gb bandwidth
Appearance
Dimension (H x W x D) (mm)88 x 438 x 491
Chassis Form Factor19" Rackmount 2U 26 bay
Net Weight (kg)16.3
Gross Weight (kg)18.6
Notes-
Memory Protection
Cache-to-Flash Module
Battery Backup Module + Flash Module-
NotesDoes not need Battery Backup Module
Others
System Fan4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off-
Wake on LAN/WAN
Power Supply Unit / Adapter770W/850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage100V-240V
Power Frequency50-60 Hz, Single Phase
Power Consumption429W
British Thermal Unit1,464BTU
LCM Support
Notes-
Environment Temperature
Operating Temperature0 to 40°C
Storage Temperature-10°C to 50°C
Operating Relative Humidity20% to 80% non-condensing
Non-operating Relative Humidity10% to 90%
Notes-
Certification
Certifications

CE

FCC

CCC

BSMI

VCCI

KCC

Notes-
Warranty
Standard Warranty{0} years
Notes-
