XS3226 Features Specs

XCubeSAN

XS3226

CPU

Intel® Quad-Core Processor

RAM

4GB DDR4 ECC DIMM (Max 128GB)

Performance Density

World's 1st 2U-26 Bay Design

Active-Active Architecture

Dual-Active Design

Easy File Access with Quick Connection

XFinder

XFinder is a desktop utility that searches for QSAN XCubeSAN devices in the local area network.

Find your SAN >

Liquid Crystal Monitor

Portable USB LCM (LCD Module) can help you identify management port IP address.

High Performance SAN System
for Enterprise Entry

Thin Provisioning (QThin)

Dynamic size just-in-time and just-enough.

SSD Cache (QCache)

Accelerate the applications data access time

Auto Tiering (QTiering)

Put the Right Data at the Right Place in the Right Time

Active-Active

Dual-Active Design

The XCubeSAN series features a Dual-Active controller architecture. Both controllers concurrently provide storage services in real time. Active-Active architecture doubles the available host bandwidth and cache-hit ratio which ensures there is no wasted resource in the system.

Fastest 12Gb SAS 3.0

Latest 12Gb SAS 3.0 Controller

12Gb SAS 3.0 is the latest and fastest drive interface available. It doubles the data transfer rate of SAS 2.0 (6Gb), while remaining backward compatible with 6Gb SAS 2.0 drives. The benefit is that you have the flexibility to purchase less expensive 6Gb SAS drives for initial installation or leverage investment of your existing 6Gb SAS drives and have a peace of mind knowing you can migrate to 12Gb SAS 3.0 by purchasing only new drives.

Cache-to-Flash

Reliable and Advanced Protection Mechanism

In the event of power loss, the I/O cache data stored in volatile memory will be lost. Cache-to-Flash memory protection function that will safely transfer the memory cache data to a non-volatile flash device for permanent preservation.

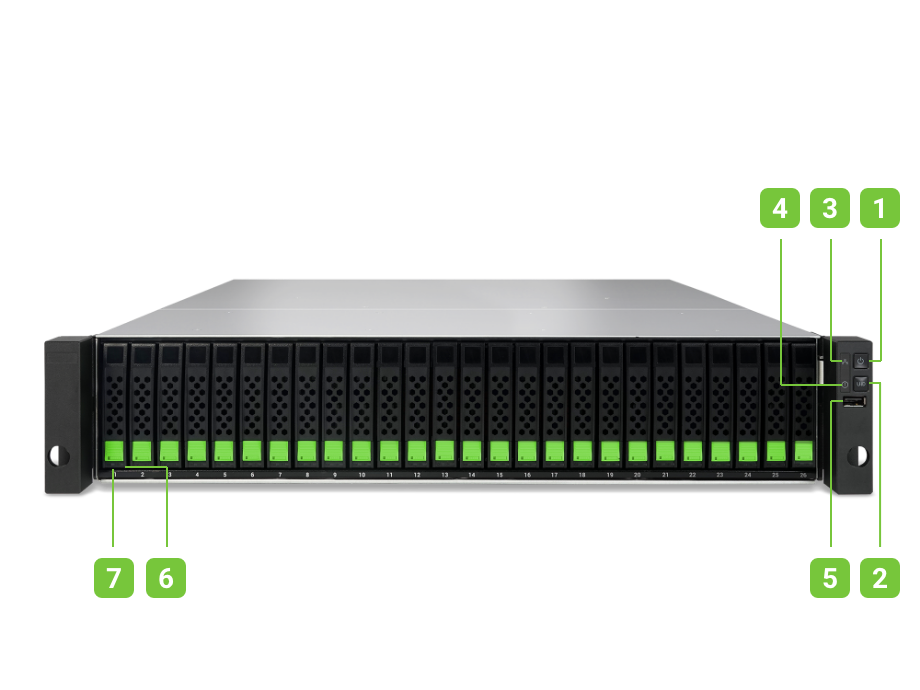

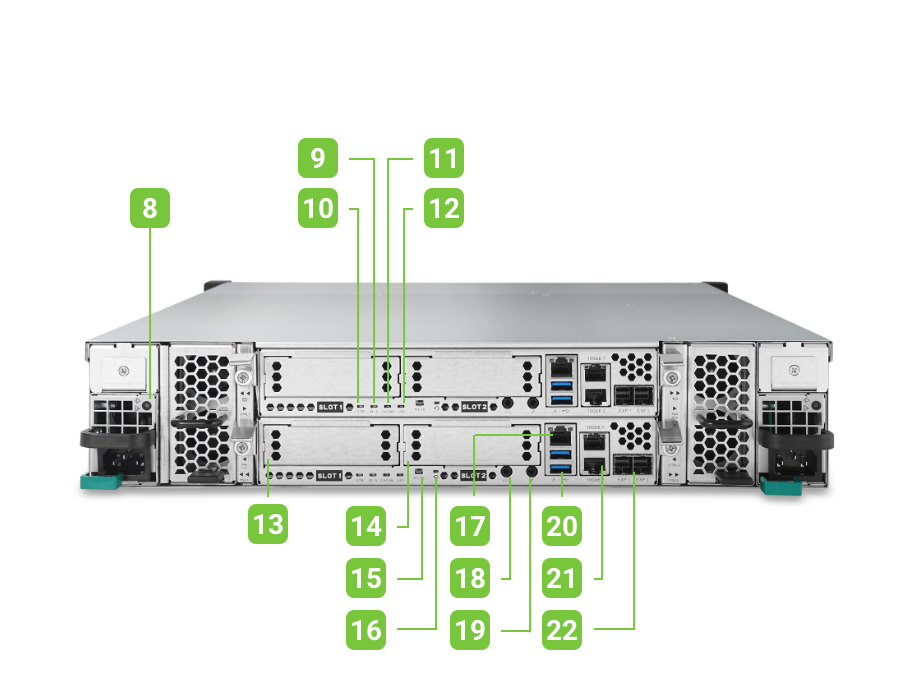

Enclosure Power Button / LED UID Button / LED Enclosure Access LED Enclosure Status LED USB Port Disk Drive Power LED Disk Drive Status LED Power Supply Unit – PSU Indicator and Beep Off Button Controller Status LED Master / Slave LED (only for dual controllers) Dirty Cache LED UID (Unique Identifier) LED Host Card Slot 1 (host card is an optional part) Host Card Slot 2 (host card is an optional part) Buzzer Mute Button Reset to Factory Default Button Management Port Console Port Service Port USB Port 10GbE iSCSI Port 12Gb/s SAS Wide Port

Hardware Specifications

ArchitectureDual (Active-Active)
Storage OSSANOS 4 Specification Details
CPU
ProcessorIntel®
CPU Architecture64-bit
CPU FrequencyQuad-Core
Memory
System Flash-
Memory Module Pre-installed4GB DDR4 ECC DIMM
Total Memory Slots4
Memory Expandable up to128GB
NotesPer Controller
Storage
Drive Bays

2.5" Slot x 26

Maximum Drive Bays with Expansion Unit626
Compatible Drive Type

2.5" SAS SSD

2.5" SAS SED SSD

2.5" SAS HDD

2.5" SAS SED HDD

2.5" NL-SAS HDD

Drive Interface

SAS 12Gb/s

Maximum Internal Raw Capacity399TB
Maximum Raw Capacity with Expansion Units8,799TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum Internal Raw Capacity = 15.36TB drive x 26
  • Capacity may vary by RAID types
  • Up to 10 expansion units using XD5300 series 12Gb/s SAS expansion enclosure
External Port
USB 2.0 Port1 (Front)
USB 3.0 Port-
HDMI Port-
OthersUPS Port x 1
Console Port x 1
Notes-
Connectivity Port
{0}GbE RJ45 LAN Port1 (Onboard Management Port)
{0}GbE RJ45 LAN Port2 (Onboard)
2 iSCSI (Option: HQ-10G2T)
{0}GbE SFP+ LAN Port4 iSCSI (Option: HQ-10G4S2)
Thunderbolt 3-
{0}Gb SFP+ Fibre Channel4 (Option: HQ-16F4S2)
2 (Option: HQ-16F2S2)
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

Expansion Port
12Gb/s SAS Wide Port2 (Onboard)
Notes-
PCIe Expansion
Gen3x8 Slot-
Gen3x4 Slot-
Notes-
Host Card Expansion
Gen3x8 Slot1
Gen2x4 Slot1
NotesGen2x4 slot provides 20Gb bandwidth
Appearance
Dimension (H x W x D) (mm)88 x 438 x 491
Chassis Form Factor19" Rackmount 2U 26 Bay
Net Weight (kg)16.3
Gross Weight (kg)18.6
Notes-
Memory Protection
Cache-to-Flash Module
Battery Backup Module + Flash Module
Notes-
Others
System Fan4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off-
Wake on LAN/WAN
Power Supply Unit / Adapter770W/850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage100V-240V
Power Frequency50-60 Hz, Single Phase
Power Consumption429W
British Thermal Unit1,464BTU
LCM Support
Notes-
Environment Temperature
Operating Temperature0 to 40°C
Storage Temperature-10°C to 50°C
Operating Relative Humidity20% to 80% non-condensing
Non-operating Relative Humidity10% to 90%
Notes-
Certification
Certifications

CE

FCC

BSMI

VCCI

KCC

Notes-
Warranty
Standard Warranty{0} years
Battery backup module : 1 year
Notes-
